4pc 14" & 15-1/2" Million Color LED Wheel Ring Add-On Lighting Kit for Bluetooth & Wireless Underbody Kits

$194.99

SKU:
LU-A-UB-MW-WWR-C1.2
UPC:
842383116431
Gift wrapping:
Options available
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • EXTENDED HOLIDAY RETURNSACCEPTED UNTIL JANUARY 31ST

  • DELIVERY BY CHRISTMASCONTIGUOUS US ONLY

  • Free Lifetime Support

  • 1 Year Limited Warranty

Overview

LED Wheel Rings Add-On Combo Kit

LEDGlow’s 4pc 14” & 15-1/2" Combo Million Color LED Wheel Ring Add-On Lighting Kit for Bluetooth & Wireless Underbody Kits installs directly to the dust shield or hub assembly and allows the LED lights to shine through the wheel for a custom look. This wheel ring light kit seamlessly integrates with an already installed Smartphone Controlled Million Color or Million Color Wireless Underbody Lighting Kit. It expands the multi-color aftermarket underglow lighting to the wheels of any car or truck. Each ring has a sleek black anodized finish and this kit features both 14” and 15-1/2” diameter rings which are ideal for vehicles with larger front wheels. The 14” rings fit 18” or larger wheels with a maximum size of 13-1/2” diameter rotors. The 15-1/2” rings fit 20” or larger wheels with a maximum size of 15-1/2” diameter rotors. Included are 4 rings with Pre-Attached Waterproof LED Light Strips, a 4-Port Wheel Ring Distributor Cable, 2-Port Underbody-to-Wheel Ring Distributor Cable, and Hardware for installation.

LED Wheel Ring Kit Installation

Each wheel ring is manufactured from rust-resistant aluminum with 10 Pre-Drilled and Tapped Holes, 5 Pre-Attached Mounting Brackets, and 2 Adjustable Clip-On Brackets for added reinforcement. The aluminum wheel ring measures at 1/8” in thickness, resulting in a heavy-duty design which is almost 5x thicker than the competition’s flimsy ring. The Wheel Rings and Mounting Brackets have a sleek, black anodized finish so that they blend in with the wheels during daytime when the lights aren’t being used. An LED light strip is pre-attached to each ring with double sided tape. The 14" ring has a 45-1/2" strip with 33 SMD LEDs and the 15-1/2" ring has a 50-1/4" strip with 36 SMD LEDs. The light strips feature an IP67 Waterproof Rated Housing that completely seals the LEDs and Circuit Board with Silicone to protect against the elements, dirt and dust. Each light strip has 13’ of wire with a 6-pin Connector that plugs into the included Distributor Cable of the LED wheel ring lighting kit. Every car isn’t built the same and installing these wheel ring lights to your vehicle requires time and effort. We want to provide you with a versatile design that has 360° of mounting possibilities to make the installation process on any application efficient.

Compatibility

This Million Color Wheel Ring Light Kit Add-on Kit is compatible with LEDGlow’s Million Color SMD LED Car/Truck Underbody Lighting Kit with Smartphone Control (LU-UB-MBT40.2, LU-UB-MBT60.2) or Million Color Wireless SMD LED Underbody Lighting Kit (LU-UB-MW40.3, LU-UB-MW60.3).

LEDGlow's Customer Guarantee

LEDGlow includes installation instructions, free lifetime technical support and a one-year limited warranty with each purchase.

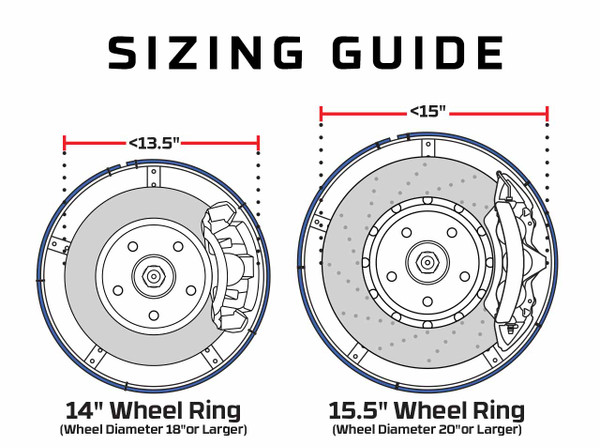

Wheel Ring Sizes 14" Rings 15-1/2" Rings
LED Count 33 LEDs per Ring 36 LEDs per Ring
Strip Length 45-1/2" Waterproof Strip 50-1/4" Waterproof Strip
Brake Assembly Size ≤ 13-1/2" Diameter ≤ 15-1/2" Diameter
Wheel Size ≥ 18" Diameter ≥ 20" Diameter

What's Included

  • (2) 14" Wheel Rings with Pre-Attached Waterproof LED Strip, 5 Brackets & 10 Pre-Drilled Holes
  • (2) 15-1/2" Wheel Rings with Pre-Attached Waterproof LED Strip, 5 Brackets & 10 Pre-Drilled Holes
  • 45-1/2" LED Strip - 33 SMD LEDs per Ring
  • 50-1/4" LED Strip - 36 SMD LEDs per Ring
  • IP67 Rating
  • Rings Feature 13’ of Wire with 6-Pin Connector
  • 4-Port Wheel Ring Distributor Cable
  • 2-Port Underbody & Wheel Ring Distributor Cable
  • 8 Adjustable Clip-On Brackets
  • 16 Bolts, Nuts & Locking Washers
  • 20 Zip-Ties
  • Installation Instructions
  • Free Lifetime Technical Support
  • One-Year Limited Warranty
Instructions

The 4pc 14" & 15-1/2" Million Color LED Wheel Ring Add-On Lighting Kit for Bluetooth & Wireless Underbody Kits comes with an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of LEDGlow products.

Download and Print the PDF View Our Help Center
