4pc 15-1/2" Million Color LED Wheel Ring Add-On Lighting Kit for Bluetooth & Wireless Underbody Kits

$199.99

SKU:
LU-A-UB-MW-WWR15.2
UPC:
842383116295
Gift wrapping:
Options available
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • Free Shipping Over $50

    Free Shipping Over $50Contiguous USA

  • 30 Day No Hassle Returns

    30 Day Easy Returns

  • Free In-House Support

    Free In-House Support

  • One Year Limited Warranty

    One Year
    Limited Warranty

Overview

Showcase the Wheels of Your Ride

Showcase the wheels of your ride with LEDGlow’s 15-1/2” Million Color Wheel Rings that install directly to the dust shield or hub assembly and allows the LED lights to shine through the wheel for a custom look. This wheel ring light kit seamlessly integrates with an already installed Smartphone Controlled Million Color or Million Color Wireless Underbody Lighting Kit, and expands the multi-color aftermarket underglow lighting to the wheels of any car or truck. Each ring has a sleek black anodized finish and features a diameter of 15-1/2” for 20” or larger wheels with a maximum size of 15-1/2” diameter rotors. Each wheel ring add-on kit includes 4 rings with pre-attached waterproof LED light strips, a 4-port wheel ring distributor cable, 2-port underbody to wheel ring distributor cable, and the hardware you’ll need for a complete installation.

Installation Features

Each wheel ring is manufactured from rust-resistant aluminum with 10 pre-drilled and tapped holes, 5 pre-attached mounting brackets, and 2 adjustable clip-on brackets for added reinforcement. The aluminum wheel ring measures at 1/8” in thickness, resulting in a heavy-duty design, which is almost 5x thicker than the competition’s flimsy ring. The Wheel Rings and Mounting Brackets have a sleek, black anodized finish so that they blend in with the wheels during daytime when the lights aren’t being used. Every car isn’t built the same and installing these wheel ring lights to your vehicle requires time and effort. We want to provide you with a versatile design with 360° of mounting possibilities to make the installation process on any application as unique and easy as it can be.

A 50-1/4” LED light strip with 36 SMD LEDs is pre-attached to each ring with double sided tape. The light strip features an IP67 waterproof rated housing that completely seals the LEDs and circuit board with silicone to protect against the elements, dirt and dust. Each light strip features 13’ of wire with a 6-pin connector that plugs into the included distributor cable of your wheel ring light kit.

Compatibility

This Million Color Wheel Ring Light Kit Add-on Kit is compatible with LEDGlow’s Million Color SMD LED Car/Truck Underbody Lighting Kit with Smartphone Control (LU-UB-MBT40.2, LU-UB-MBT60.2) or Million Color Wireless SMD LED Underbody Lighting Kit (LU-UB-MW40.3, LU-UB-MW60.3).

LEDGlow's Customer Guarantee

LEDGlow includes installation instructions, free lifetime technical support and a one-year limited warranty with each purchase.

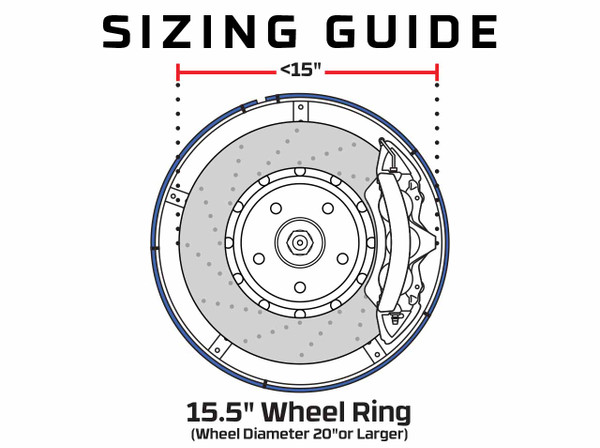

Wheel Ring Size 15-1/2" Ring
LED Count 36 LEDs per Ring - 144 Total LEDs
Strip Length 50-1/4" Waterproof Strip
Brake Assembly Size ≤ 15" Diameter
Wheel Size ≥ 20" Diameter

What's Included

  • (4) 15-1/2" Wheel Rings with Pre-Attached Waterproof LED Strip, 5 Brackets & 10 Pre-Drilled Holes
  • 50-1/4" LED Strip - 36 SMD LEDs per Ring
  • 144 Total SMD LEDs
  • IP67 Rating
  • Rings Feature 13’ of Wire with 6-Pin Connector
  • 4-Port Wheel Ring Distributor Cable
  • 2-Port Underbody & Wheel Ring Distributor Cable
  • 8 Adjustable Clip-On Brackets
  • 16 Bolts, Nuts & Locking Washers
  • 20 Zip-Ties
  • Installation Instructions
  • Free Lifetime Technical Support
  • One-Year Limited Warranty

We take a lot of pride in producing our own video content in-house, whether it’s a step-by-step tutorial on how to install your LED lighting kit or taking it to the next level with a video demo where you can see the kit in action! Check out what we have available for the 4pc Million Color LED Wheel Ring Lighting Kit to experience it for yourself!

Million Color Wheel Ring Lighting Kit Product Video Million Color Wheel Ring Lighting Kit Car Install Video
Million Color Wheel Ring Lighting Kit Car Install Video
Instructions

The 4pc 15-1/2" Million Color LED Wheel Ring Add-On Lighting Kit for Bluetooth & Wireless Underbody Kits comes with an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of LEDGlow products.

Download and Print the PDF View Our Help Center
Videos
