LED Wheel Rings Add-On Kit
LEDGlow’s 4pc 17" Million Color LED Wheel Ring Add-On Lighting Kit for Bluetooth & Wireless Underbody Kits installs directly to the dust shield or hub assembly and allows the LED lights to shine through the wheel for a custom look. This wheel ring light kit seamlessly integrates with an already installed Smartphone Controlled Million Color or Million Color Wireless Underbody Lighting Kit. It expands the multi-color aftermarket underglow lighting to the wheels of any car or truck. Each ring has a sleek black anodized finish and features a diameter of 17” for 21” or larger wheels with a maximum size of 16-1/2” diameter rotors. Included are 4 rings with Pre-Attached Waterproof LED Light Strips, a 4-Port Wheel Ring Distributor Cable, 2-Port Underbody-to-Wheel Ring Distributor Cable, and Hardware for installation.
LED Wheel Ring Kit Installation
Each wheel ring is manufactured from rust-resistant aluminum with 10 Pre-Drilled and Tapped Holes, 5 Pre-Attached Mounting Brackets, and 2 Adjustable Clip-On Brackets for added reinforcement. The aluminum wheel ring measures at 1/8” in thickness, resulting in a heavy-duty design which is almost 5x thicker than the competition’s flimsy ring. The Wheel Rings and Mounting Brackets have a sleek, black anodized finish so that they blend in with the wheels during daytime when the lights aren’t being used. A 55” LED light strip with 39 SMD LEDs is pre-attached to each ring with Double Sided Tape. The light strip features an IP67 Waterproof Rated Housing that completely seals the LEDs and Circuit Board with Silicone to protect against the elements, dirt and dust. Each light strip features 13’ of wire with a 6-pin Connector that plugs into the included Distributor Cable of the LED wheel ring lighting kit. Every car isn’t built the same and installing these wheel ring lights to your vehicle requires time and effort. We want to provide you with a versatile design that has 360° of mounting possibilities to make the installation process on any application efficient.
This Million Color Wheel Ring Light Kit Add-on Kit is compatible with LEDGlow’s Million Color SMD LED Car/Truck Underbody Lighting Kit with Smartphone Control (LU-UB-MBT40.2, LU-UB-MBT60.2) or Million Color Wireless SMD LED Underbody Lighting Kit (LU-UB-MW40.3, LU-UB-MW60.3).
LEDGlow's Customer Guarantee
LEDGlow includes installation instructions, free lifetime technical support and a one-year limited warranty with each purchase.
|Wheel Ring Size
||39 LEDs per Ring - 156 Total LEDs
||55" Waterproof Strip

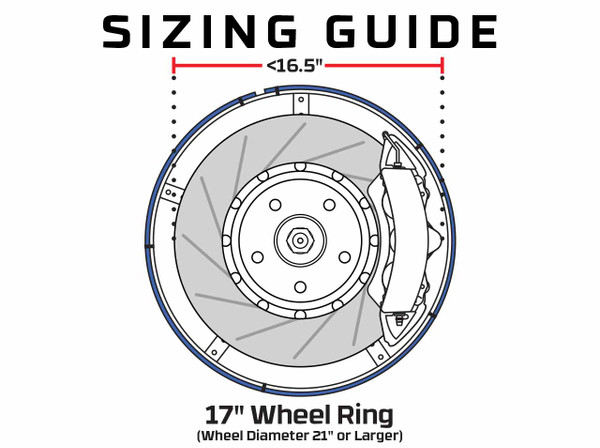

|Brake Assembly Size
||≤ 16-1/2" Diameter
||≥ 21" Diameter
- (4) 17" Wheel Rings with Pre-Attached Waterproof LED Strip, 5 Brackets & 10 Pre-Drilled Holes
- 55" LED Strip - 39 SMD LEDs per Ring
- 156 Total SMD LEDs
- IP67 Rating
- Rings Feature 13’ of Wire with 6-Pin Connector
- 4-Port Wheel Ring Distributor Cable
- 2-Port Underbody & Wheel Ring Distributor Cable
- 8 Adjustable Clip-On Brackets
- 16 Bolts, Nuts & Locking Washers
- 20 Zip-Ties
- Installation Instructions
- Free Lifetime Technical Support
- One-Year Limited Warranty
We take a lot of pride in producing our own video content in-house, whether it’s a step-by-step tutorial on how to install your LED lighting kit or taking it to the next level with a video demo where you can see the kit in action! Check out what we have available for the 4pc Million Color LED Wheel Ring Lighting Kit to experience it for yourself!
The 4pc 17" Million Color LED Wheel Ring Add-On Lighting Kit for Bluetooth & Wireless Underbody Kits comes with an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of LEDGlow products.
