4pc Million Color LED Wheel Ring Lighting Kit

Gift wrapping:
Options available
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
  • Free Shipping Over $50

  • Free Lifetime Support

  • 1 Year Limited Warranty


Showcase the Wheels of Your Ride

Showcase the wheels of your ride with LEDGlow’s Million Color Wheel Rings that install directly to the dust shield or hub assembly and allow 5050 SMD LED lights to shine through the wheel for a custom look. This wheel ring light kit is offered in 3 different sizes: 14”, 15-½” and 17” kits are available, each of which contain (4) wheel rings. Combo Kits featuring 14”/15-½” and 15-½”/17” rings are also available which include (2) of each respective wheel ring size.

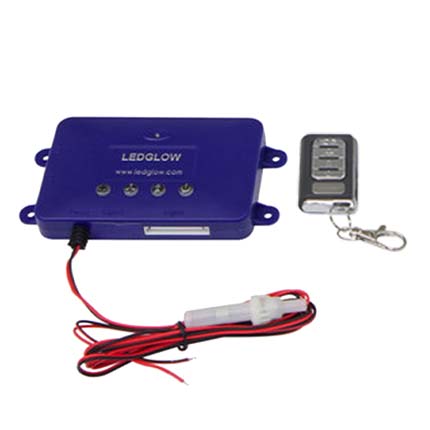

Control Box Features

The included control box features 18 solid colors, 5 flashing, 5 scanning, 5 chasing modes and 5 sound activated modes, along with color cycle and million color fade modes. Solid Colors include blue, green, red, pink, purple, yellow, teal, aqua, orange, white, lavender, light green, pale green, lime green, light blue, light pink and light purple. With LEDGlow’s Million Color feature you can experience a wide range of variations in the shading of each solid color that will create a completely unique look and feel for your wheel ring lights. All solid color and lighting modes can be easily selected with the included wireless remote, or by simply pressing the buttons on the control box. The control box also easily connects to any 12 volt power source and features 13’ of power and ground wires and a 5 amp fuse for circuit protection.

Sizing Guide

With LEDGlow’s Sizing Guide you can determine which Wheel Ring Light Kit is the right fit for your vehicle. With three different sizes available, these kits have been designed to match a wide range of makes and models. Start by first measuring your car or truck’s front and back wheel diameter and brake assembly respectively to confirm which kit they are compatible with. Here is a breakdown of the corresponding wheel and brake assembly dimensions for each kit:

Wheel Ring Size Guide

Wheel Ring Sizes 14" Ring 15-1/2" Ring 17" Ring
LED Count 33 LEDs per Ring - 132 Total LEDs 36 LEDs per Ring - 144 Total LEDs 39 LEDs per Ring - 156 Total LEDs
Strip Length 45-1/2" Waterproof Strip 50-1/4" Waterproof Strip 55" Waterproof Strip
Brake Assembly Size ≤ 13-1/2" Diameter ≤ 15" Diameter ≤ 16-1/2" Diameter
Wheel Size ≥ 18" Diameter ≥ 20" Diameter ≥ 21" Diameter

Wheel Ring Specs

Each wheel ring is manufactured from rust-resistant aluminum with 10 pre-drilled and tapped holes, 5 pre-attached mounting brackets, and 2 adjustable clip-on brackets for added reinforcement. The aluminum wheel ring measures at 1/8” in thickness, resulting in a heavy-duty design, which is almost 5x thicker than the competition’s flimsy ring.

An LED light strip is pre-attached to each ring with double sided tape. The light strip features an IP67 waterproof rated housing that completely seals the LEDs and circuit board with silicone to protect against the elements, dirt and dust. Each light strip features 13’ of wire with a 6-pin connector that plugs into the included distributor cable of your wheel ring light kit.

Every car isn’t built the same and installing these wheel ring lights to your vehicle requires time and effort. We want to provide you with a versatile design with 360° of mounting possibilities to make the installation process on any application as unique and easy as it can be.

Installation Options

Pre-Drilled Holes & Mounting Brackets

With LEDGlow’s Pre-Drilled Mounting installation method you can install your wheel ring lights to the back of your wheel’s dust shield or hub assembly via the 5 Pre-Attached Mounting Brackets that come with your wheel ring. Each ring has 10 pre-drilled & tapped holes that are evenly located around the entire ring. After first verifying the mounting locations for each bracket along the brake assembly, you can reposition the brackets if needed to line up with any of the pre-drilled holes. These brackets can also be removed completely.

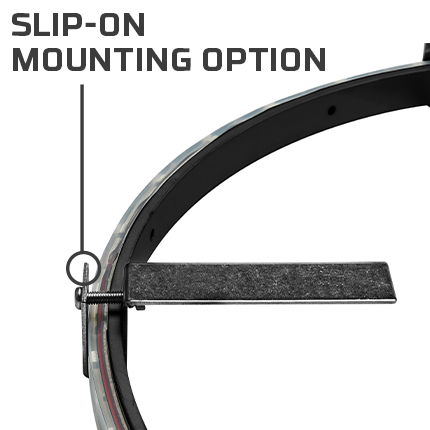

Additional Adjustable Brackets

The Slip-On Mounting installation method offers even more flexibility with the installation of your wheel rings to your hub or dust shield. (2) adjustable Slip-On Brackets easily attach and detach from your wheel ring and can also be rotated along any portion of the ring. With this added maneuverability there is no need to reposition any pre-attached mounting brackets. If a bracket doesn’t line up with one of the pre-drilled & tapped holes, the Slip-On Brackets can take their place and be adjusted to line up with the hole. With this option you can also remove some of the pre-attached brackets if you prefer.


This Million Color Wheel Ring Light Kit can be easily added to any Million Color SMD LED Car/Truck Underbody Lighting Kit with Smartphone Control (LU-UB-MBT40.2, LU-UB-MBT60.2) or Million Color Wireless SMD LED Underbody Lighting Kit (LU-UB-MW40.3, LU-UB-MW60.3).

LEDGlow’s Customer Guarantee

LEDGlow includes step-by-step installation instructions, free lifetime technical support and a one-year limited warranty with each purchase.

What's Included

  • (4) Wheel Rings with Pre-Attached Waterproof LED Strip, 5 Brackets & 10 Pre-Drilled Holes
  • 14” Wheel Ring - 45-1/2" Strip with 33 SMD LEDs per Ring
  • 15-1/2” Wheel Ring - 50-1/4" Strip with 36 SMD LEDs per Ring
  • 17” Wheel Ring - 55" Strip with 39 SMD LEDs per Ring
  • Million Color Control Box & Wireless Remote
  • Rings Feature 13’ of Wire with 6-Pin Connector
  • 4-Port Distributor Cable
  • 8 Adjustable Clip-On Brackets
  • 16 Bolts, Nuts & Locking Washers
  • 20 Zip-Ties
  • Installation Instructions
  • Free Lifetime Technical Support
  • One-Year Limited Warranty
6' Wire Extensions
6' Wire Extensions

This 2pc Wheel Ring Wire Extension adds to the 13’ of wiring by extending it 6’ to reach areas of the vehicle that the wire attached to the tube cannot. Each extension hub features a 2-piece screw on design with a rubber gasket lining around the connector allowing for an ultra-tight, water-resistant seal.

  • Extends Wheel Ring Wiring By 6’
  • Easy To Hide Underneath Of The Car Or In The Engine Bay
  • Ideal for Rings Being Installed to Rear Wheels

The 4pc Million Color LED Wheel Ring Lighting Kit comes with an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of LEDGlow products.

Download and Print the PDF View Our Help Center
